W2ENY Ultra-Mini Desk Microphone

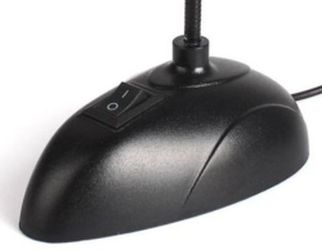

I've been experimenting with MANY headsets and mic elements over the last few years.  This is not a kit, works great and ready to plug and go with your radio (4 or 8 pin mic connector).  Desktop unit features a lightly weighted base, latching (on-off) transmit/receive rocker switch, an electret element for great sound; I've been getting nothing but excellent 'ON AIR' audio reports.


Good Sound at -52dB sensitivity,
Unrestricted wide range audio 100Hz-16kHz


Up to 4 feet of shielded cable

Please specify length if you want less than 4 ft.

Very small Base 2"x3", 8" high with flexible neck - Perfect for travel!

----------------------------------------------------------------------------------------------------------

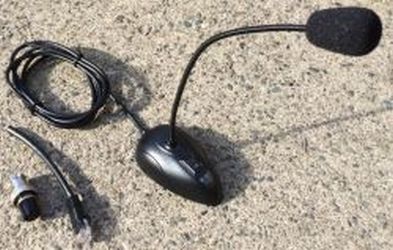

Round and Modular connectors are shown in the pic as an example.

Please advise on your radio so I can fix the proper connector to the mic.

This can be fitted with 4 or 8 pins, round or modular for any of these:

Icom - 706 (original, mkII, mkIIg), 703, 718, 725, 726, 728, 729, 735, 736, 737, 738, 745, 746, 746 PRO, 751, 751A, 756, 756 PRO (I, II, III), 761, 765, 775, 781, 820, 821, 970, 7000, 7100, 7200, 7300, 7410, 7600, 7610, 7700, 7800.

Kenwood  - 140, 430, 440, 450, 480, 570, 660, 670, 680, 690, 850, 870, 930, 940, 950, 2000, TM-231 and 241
(TS590 requires a battery box, $15 extra, also on the TS930 - some did not have voltage on pin 5, please check or you will need the battery box as well)

Elecraft K2 and K3 (pin 6 bias is assumed, please advise if different)

Ten Tec Orion, Orion II, Argonaut V, Jupiter, Eagle, OMNI VI, OMNI VII, Paragon, Delta II, Corsair, Scout (please specify radio or if 4 or 8 pins)

Yaesu - 450, 817, 847, 857, 891, 897, 920, 950, 991, 1200, 2000, 2000D, 1000MP, 1000MP Mk V Field, FTDX (all models)
(For these models- FT101, 102, 301, 736, 757, 767, 840, 890, 900, 901, 902, 990, 1000 or 1000D - these require a battery box, add $15).

Alinco DX-SR8T, DX70, DX-77, DX801, DR135, DR235, DR435, DR570, DR620, DR635, M06 and others

FLEX 3000, 5000, 6300, 6700 and others

Kenwood 830, 530, 180, 130, 120, T599 (4 pin) add $15 for the battery box to power the element (two 'AAA' batteries).

YOU NEED TO ADVISE ON WHAT RADIO I SHOULD WIRE THIS FOR

Some have questioned how is this a latching rocker switch PTT?  Well when you switch it on, you transmit, when you switch it off, you receive.  Pretty simple I thought.

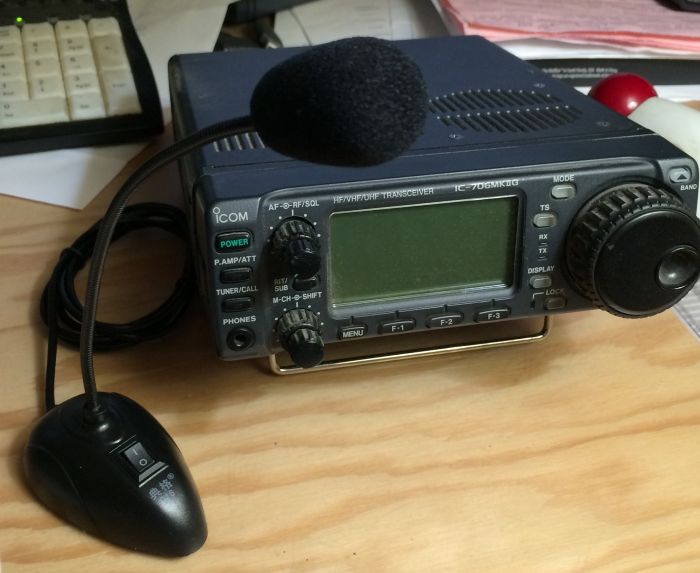

Icom 706 Radio is not included and is shown for illustration and size only!

MiniMic



US BUYERS ONLY

$30 shipped by check or money order!

Send payment to:
Robert Langston
286 Hudson Street
Cornwall-on-Hudson, N.Y. 12520

Or Buy it Now with Paypal!

Radio Option

For buyers outside the US, I have these listed on ebay.
